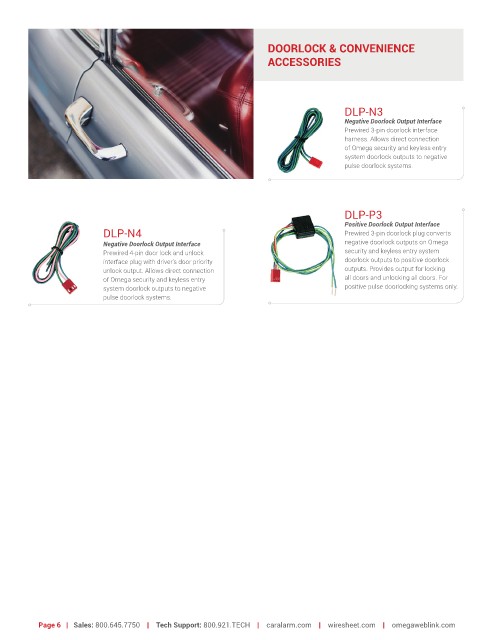

DOORLOCK & CONVENIENCE
ACCESSORIES DLS
Doorlock Relay Socket
Prewired dual relay socket allows easy installation of optional
relays to both the Omega security or keyless entry system, and
the vehicle. Can be confi gured to operate 3-wire negative, 3-wire
DLP-N3 positive, and 5-wire reversal power doorlocking systems for lock
Negative Doorlock Output Interface and unlock by the Omega system. Two SPDT relays are required
Prewired 3-pin doorlock interface (not included - See The AU-7 on p10).
harness. Allows direct connection
of Omega security and keyless entry • Heavy duty 14 gauge connection wire.
system doorlock outputs to negative • Connects to Security or Keyless Entry System via Prewired 3-pin door
lock plug.
pulse doorlock systems.
DLP-P3
Positive Doorlock Output Interface
DLP-N4 Prewired 3-pin doorlock plug converts
Negative Doorlock Output Interface negative doorlock outputs on Omega
Prewired 4-pin door lock and unlock security and keyless entry system
interface plug with driver’s door priority doorlock outputs to positive doorlock
unlock output. Allows direct connection outputs. Provides output for locking DS-2.4
of Omega security and keyless entry all doors and unlocking all doors. For 2-Wire Door Lock Actuator
system doorlock outputs to negative positive pulse doorlocking systems only. Economy gun-style actuator converts manual doorlocks into power doorlocks for use
pulse doorlock systems. with vehicle security systems. Two-wire reverse polarity operation; universal mounting
hardware included.
DS-KIT-4.4
2 or 4 Door Power Door Lock System
Economy gun-style 4-door actuator kit with control module and full harness. Activates from negative input wires. Includes two 5-wire actuators that
provide “follow me” lock unlock operation - manually lock/unlock one, the other 3 doors will follow. Includes Prewired harness with connector to plug
directly into any Omega alarm or remote start system. Includes all mounting hardware (back strap, actuator rods, rod connecting brackets).
